Smart Screw Air Compressor

Use Katariya Variable Speed Drive screw air compressor, you don't need to worry about the complex of electrical installation and programming for the machine. All parts of compressor are assembled before shipment, as long as the main power supply is connected, it can work immediately. Through the powerful intelligent controller test the pressure of the air system changes continuously, accurate to change the speed, air flow of the air compressor always consistent to the demand of the user's system intelligent controller of reaction rate is caculated by milliseconds, and at the same time for speed correction can be made within the 3 ms, make its outlet air pressure control within the minimum range.

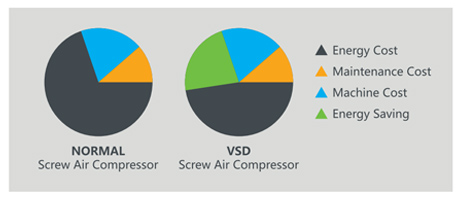

COST : The Katariya VSD screw air compressor can change the motor RPM precisely according to the air consumption under stable discharge pressure. The compressor only delivers the required air, and only consumers the energy of necessary compressed air. That's why the VSD type screw air compressor can save energy during the whole set machine operation. The cost of saving energy is much higher than the cost of machine itself.

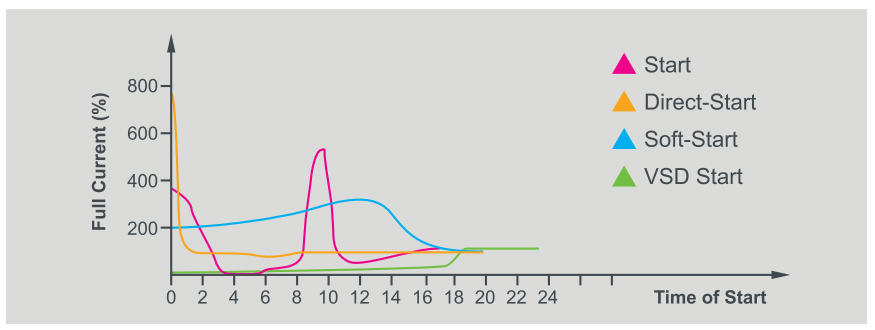

START AND OPERATMN : The figure shows a comparison of several types of start up. We can see that the VSD air compressor is slowly accelerating started, more stable than the soft-start compressor, completely avoiding the current peak. Variable speed screw air compressor is ideal for use in areas lacking of electricity.

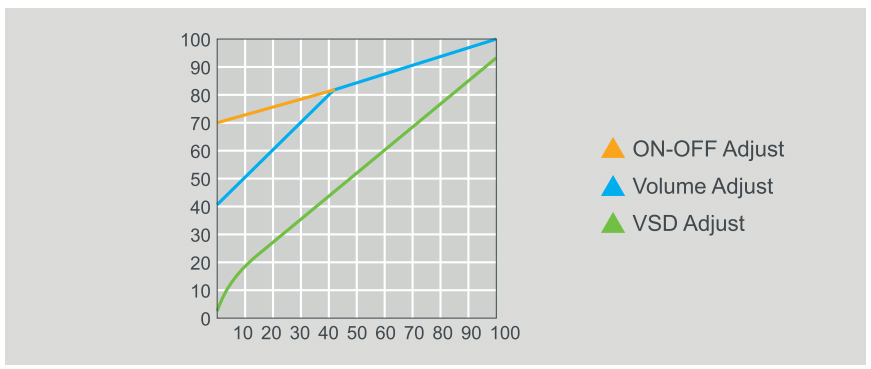

ELECTRICITY SAVING RESULT : According to the research between the VSD screw air compressor and a normal screw air compressor, there are two fields which can display the result of energy saving, the loss of no-loading and loss of fluctuating pressure .F or example, for a 55KW screw air compressor, 70% air delivery in a year, the VSD type can save about 80000KWH energy. The cost of VSD can be taken back within two years.

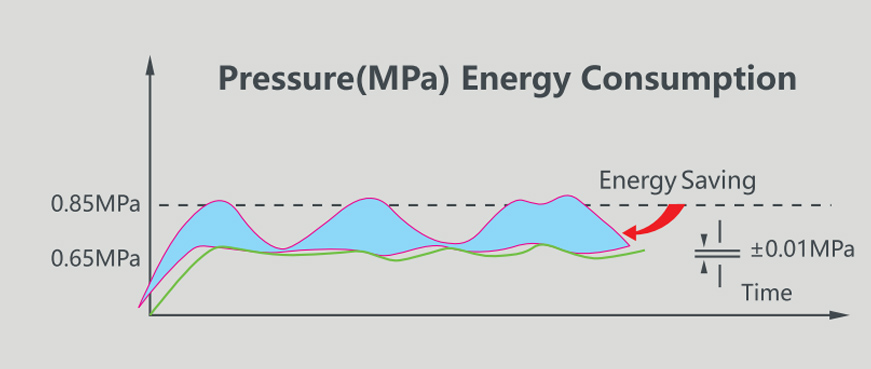

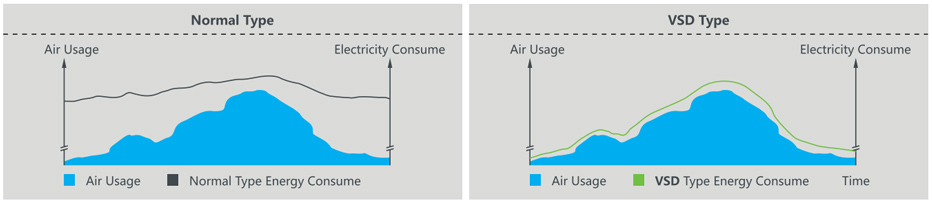

CONSTANT PRESSURE AIR SUPPLY, WITH THE BALANCE OF PRODUCTION : The figure shows the energy consumption comparison between the general air compressor and VSD air compressor. The VSD screw air compressor changes the rotating speed according to air consumption and balance the air supply and air usage. Thus avoiding the machine frequent loading and unloading, making the VSD machine save more than 35% energy compared to normal compressor. Stable pressure delivery controlled the pressure zone with 0.01 Mpa-0.02 Mpa, avoid energy loss under high pressure in the normal type air compressor.
