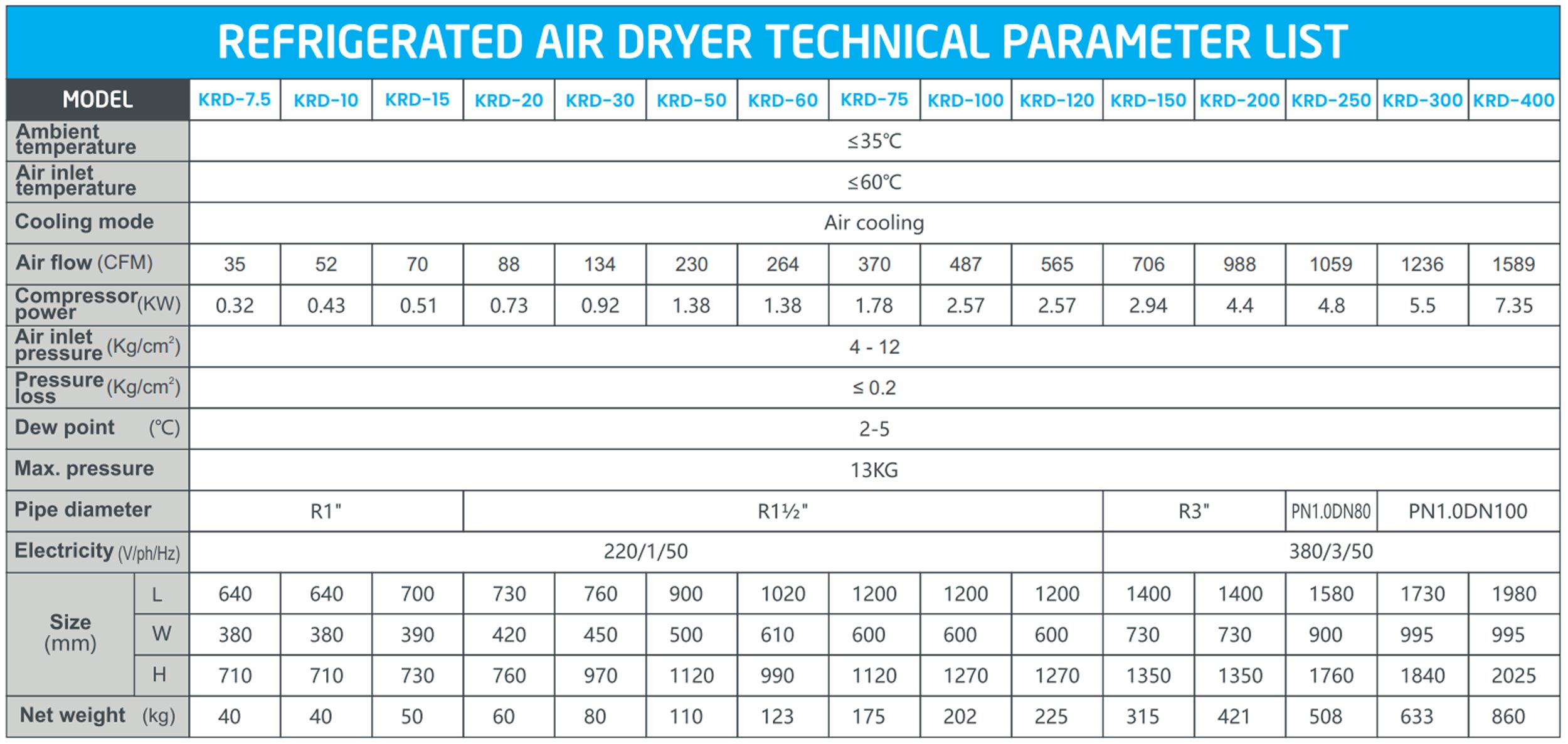

Refrigerated Air Dryer

Working Principle : The dryer is divided into three system: heat exchange, refrigeration and electric control system. Compressed air enters the air-air or air-water pre-cooler for removing heat content, then it enters the air or air heat exchanger and being cooled down to a lower temperature. After it enters the evaporator, the air to refrigerant heat reduce the air temperature down to 2-50°C (dew point temp.), the moisture will be condensed into liquid, which will be separated by separator and be drained off by the solenoid drain valve. In the mean time, low temperature air pass through the air to air heat exchanger, then goes to application after reaching designed temperature.

PIPELINE AIR FILTER

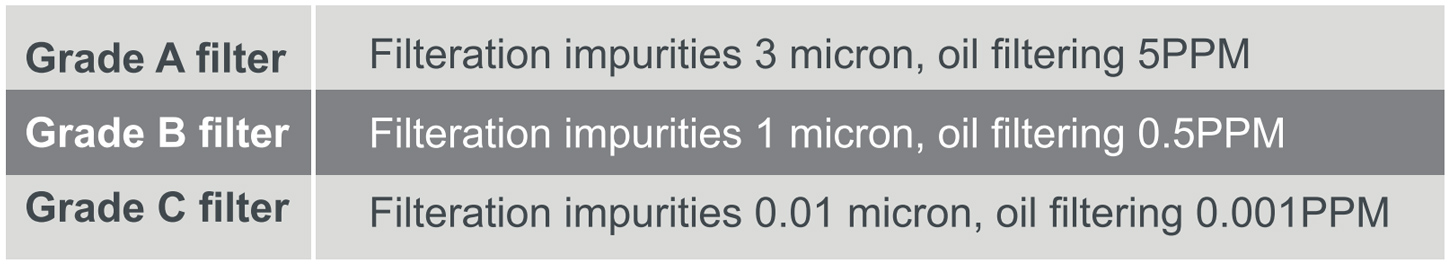

Function : The pipeline filter can filter out impurities such as dirt, oil, water, etc. Through the three-stage precision filtration of compressed air filter A, B, C, from coarse to fine, it can effectively remove 99.9% of impurities.

Designing reasonable and economical compressor stations for customers and providing clean compressed air; providing pre-sale consultation, complete machine sales, on-site maintenance, and spare parts supply with high quality and timely service.
